MOP-MCML 3D Extension: Full-Volume Optical Path Visualization on a Cartesian Grid

Posted on 2026-03-05 In Research Projects , Optical Simulation Word count in article: 2.2k Reading time ≈ 8 mins.

Introducing the 3D extension of MOP-MCML, which upgrades photon path recording from cylindrical 2D to a full Cartesian 3D grid (OP_3D), enabling volumetric visualization of light-tissue interactions — available in both CPU and GPU implementations.

Following the baseline MOP-MCML and GPU-accelerated 2D version, we faced a fundamental limitation: a 2D cylindrical OP map cannot faithfully represent off-axis, asymmetric source-detector geometries. This post introduces the 3D extension of MOP-MCML, upgrading photon path recording from $(r, z)$ cylindrical to a full $(x, y, z)$ Cartesian grid, enabling complete volumetric visualization.

1. Why a 3D Version?

Standard MCML and earlier MOP-MCML accumulate photon weights in cylindrical coordinates $(r, z)$. This is efficient and accurate when the source is on-axis, but has inherent limitations:

Off-axis source placement (non-rotationally symmetric geometries) causes cylindrical averaging to blur lateral asymmetry.
X and Y lateral dimensions cannot be independently visualized.
For multi-detector or asymmetric geometries (e.g., wrist-band sensors, ankle models), only a 3D view can truthfully reveal the photon penetration volume.

The 3D version introduces the OP_3D[nx × ny × nz] array to record full Cartesian optical path density, resolving all of the above.

2. Core Data Structure Changes

2.1 Input Structure (`InputStruct`)

On top of the existing dz, dr, nz, nr fields, four new fields are added for the X and Y grid dimensions:

double dx;   /* X grid spacing [cm] */
double dy;   /* Y grid spacing [cm] */
short  nx;   /* Number of X grid cells */
short  ny;   /* Number of Y grid cells */

The .mci input file format is extended accordingly:

1 2	0.01 0.01 0.01 0.01 # dz, dr, dx, dy 200 200 1 300 300 # nz, nr, na, nx, ny

2.2 Output Structure (`OutStruct`)

A flat 1D array representing the 3D grid is added:

1	double OP_3D; / 3D optical path density [nx * ny * nz] */

Indexing follows row-major (C-order): OP_3D[ix * ny * nz + iy * nz + iz], which can be directly reshaped into a 3D matrix in MATLAB or Python.

3. Photon Path Recording Mechanism

During each HopDropSpin call, four static buffers record the position and weight of every step of the current photon:

static double sOut[60000]  = {0};  /* accumulated weight at each step */
static short  ixOut[60000] = {0};  /* X grid index */
static short  iyOut[60000] = {0};  /* Y grid index */
static short  izOut[60000] = {0};  /* Z grid index */

These contributions are only flushed into OP_3D after the photon is captured by a detector (hits the PD window). If the photon exits without being detected, the buffer is discarded without writing to OP_3D. This deferred-write mechanism ensures that OP_3D exclusively contains paths from photons that contribute to the detected signal, giving it a clear physical meaning.

4. `PD_MODE` Compile-Time Option

The 3D version selects the detector mode via a compile-time macro, eliminating runtime branching overhead:

`PD_MODE`	Meaning
`1`	Count only the reflection detector (top surface, $z \approx 0$)
`2`	Count only the transmission detector (bottom surface, $z \approx z_{max}$)
`3`	Count both reflection and transmission (default)

Compilation example (reflection-only mode):

1	gcc -O3 -DPD_MODE=1 -o local_mcml_3d mcmlmain.c mcmlgo.c mcmlio.c mcmlnr.c -lm

The batch script run_3d_variants.sh automatically compiles, runs, and renames outputs for all three modes:

1	bash run_3d_variants.sh

After completion, the working directory contains:

1
2
3

3d_cpu_Ronly.mco
3d_cpu_Tonly.mco
3d_cpu_RT.mco

5. Input File Example

A typical 3D simulation input file test_3d.mci:

1.0      # file version
1        # number of runs

### Run 1 ###
test_3d.mco A       # output filename (ASCII)
1000000             # number of photons
0.01 0.01 0.01 0.01 # dz, dr, dx, dy [cm]
200 200 1 300 300   # nz, nr, na, nx, ny

1                   # number of layers
1.000000            # n above
# n     mua    mus    g    d
1.46   0.11   110   0.90  2
1.000000            # n below

0.2  0.0  0.1  -0.2  0.0  0.1  # PD: (Rx,Ry),Rl,(Tx,Ty),Tl [cm]
1   -0.2  0.0  0.1              # light source: type(1=point), x, y, size

Key parameters:

nx=300, ny=300, nz=200: Total voxels = $300 \times 300 \times 200 = 18 \times 10^6$; stored as double requires ~144 MB RAM, well within normal range.
PD windows: Reflection PD centered at $(0.2, 0)$ cm, side length $0.1$ cm; Transmission PD centered at $(-0.2, 0)$ cm, side length $0.1$ cm.
Light source: Point source at $(-0.2, 0)$ cm, co-axial with the transmission detector.

6. 3D Visualization

We developed the MATLAB script look_mop_3d.m to interactively explore the OP_3D data through draggable cross-sectional planes.

6.1 Interactive Slice Viewer

The script simultaneously renders three orthogonal semi-transparent slices (X-plane, Y-plane, Z-plane) in the 3D volume, color-coded as $\log_{10}(\text{OP})$ in units of $1/\text{cm}^3$. Three sliders at the bottom of the figure control slice positions in real time — dragging any slider instantly updates the corresponding plane without recomputation:

X slider: Moves the YZ slice — observe depth-wise photon distribution at different lateral X positions.
Y slider: Moves the XZ slice — compare scattering on the source side vs. the detector side.
Z slider: Moves the XY slice — inspect the lateral photon spot size at a specific depth (e.g., skin layer, muscle layer).

6.2 Usage

In MATLAB, edit the parameters at the top of the script, then run:

mco_file    = 'validate_RT/3d_cpu_RT.mco';  % target .mco file
SliceFactor = 1;      % >1 upsamples slices via interpolation for smoother display
Alpha       = 0.85;   % slice transparency (0–1)
CLim        = [-5 -2]; % color axis range for log10(OP)

1	run('look_mop_3d.m')

6.3 Simulation Result

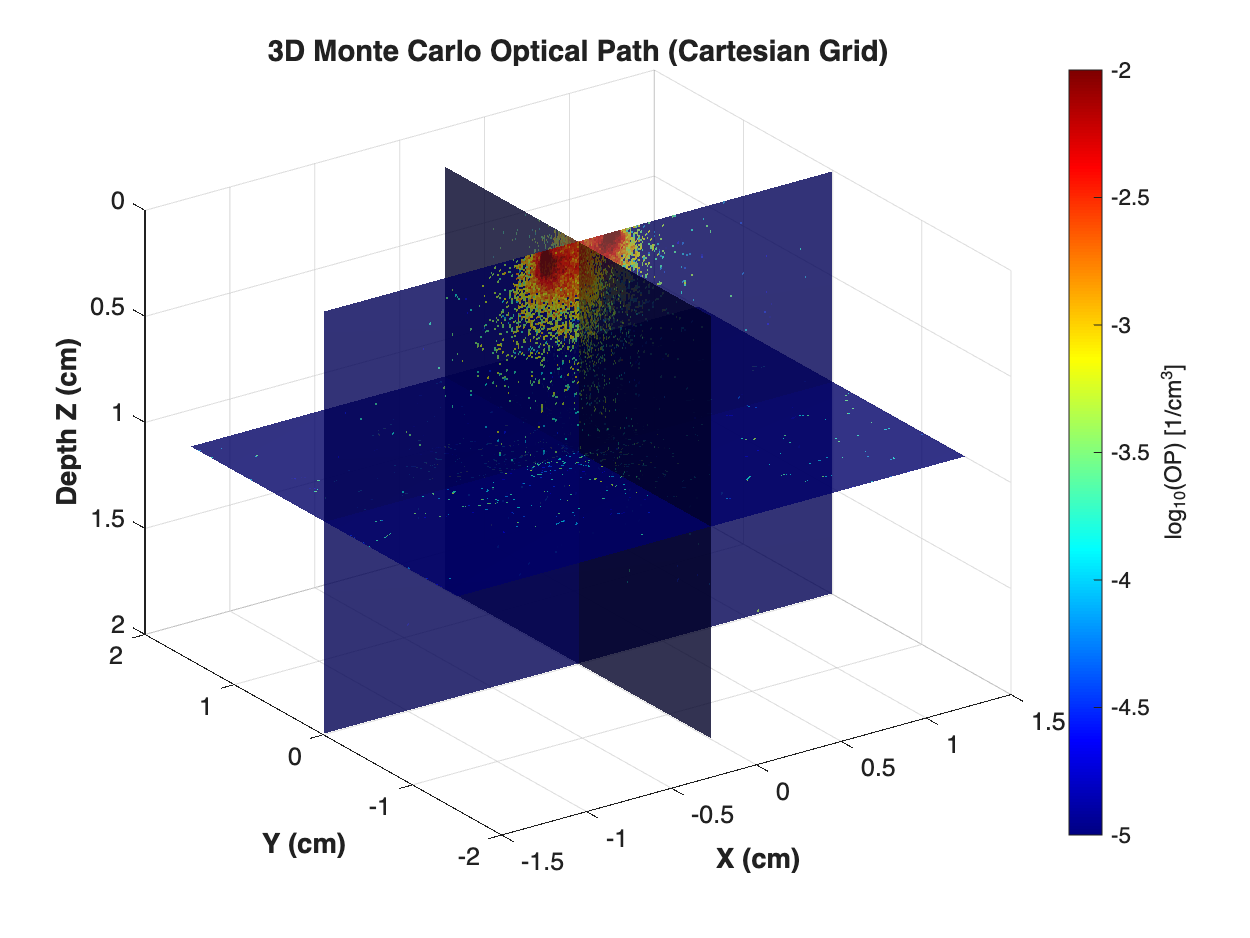

The figure below shows the actual output of the CPU simulation: three orthogonal cross-sectional slices of the $\log_{10}(\text{OP})$ volumetric field at initial positions (X=0, Y=0, Z=mid-depth). The photon injection point (point source at the top surface $z=0$) has the highest density (dark red), decaying with depth and lateral distance. This is the authoritative output of look_mop_3d.m applied to 3d_cpu_RT.mco.

3D Monte Carlo Optical Path Visualization — CPU result, 10^6 photons, RT mode, rendered in MATLAB (look_mop_3d.m)

6.4 Web Interactive Explorer

Note: The interactive viewer below is built for exploration on this webpage. It uses a spatially downsampled version of the same dataset (factor ×2, i.e., $150 \times 150 \times 100$ voxels vs. the original $300 \times 300 \times 200$). The color scale and photon distribution pattern are faithful representations of the data, but the exact values and fine-grained spatial resolution should be taken from the authoritative figure above.

How to use:

Drag the 3D figure (left-click + drag) to rotate the view.
Use the sliders or ± buttons to move each cross-sectional plane along X, Y, or Z. You can also type a number directly into the input box.
The X slider moves the YZ plane laterally (observe depth-wise asymmetry).
The Y slider moves the XZ plane (compare source vs. detector side).
The Z slider moves the XY horizontal plane (inspect photon spot size at a given depth layer).

X Slice

Y Slice

Z Slice

7. GPU 3D Version

The 3D optical path computation also has a corresponding GPU (CUDA) implementation, sharing the same physical model (Hop-Drop-Spin) and OP_3D output format as the CPU version. The two implementations produce statistically equivalent results — the only difference is computation speed.

7.1 Accuracy Equivalence Validation

The validate_RT directory contains CPU and GPU outputs for all three PD modes, ready for comparison:

File	Version	Mode
`3d_cpu_RT.mco`	CPU	RT
`3d_gpu_RT.mco`	GPU	RT
`3d_cpu_Ronly.mco`	CPU	R-only
`3d_gpu_Ronly.mco`	GPU	R-only
`3d_cpu_Tonly.mco`	CPU	T-only
`3d_gpu_Tonly.mco`	GPU	T-only

Comparing Rd and Tt values (from summary.csv) and the OP_3D slice plots confirms that both versions agree within statistical fluctuations, validating the physical correctness of the GPU parallel implementation.

7.2 Performance Advantage

The 3D grid upgrades OP_3D from the earlier 2D array to a full $N_x \times N_y \times N_z$ volume. The substantially higher memory access and computation load makes GPU acceleration especially advantageous here:

Metric	CPU (local)	GPU (A100)
Photons	$10^6$	$10^6$
Grid size	$300\times300\times200$	$300\times300\times200$
Runtime	~minutes	< 1 s
Output accuracy	Baseline	Statistically equivalent

7.3 Running the GPU 3D Version

The GPU 3D version lives in the dedicated version_3d_gpu/ directory (separate from the 2D GPU code). Submit via SLURM on the LIP6 Convergence cluster (A100 partition):

1 2	cd version_3d_gpu sbatch run_3d_gpu_variants.slurm # compiles + runs Ronly / Tonly / RT modes

The script automatically compiles with nvcc and outputs 3d_gpu_Ronly_A.mco, 3d_gpu_Tonly_A.mco, and 3d_gpu_RT_A.mco. To compile manually without SLURM:

1 2	nvcc -O3 -arch=sm_80 -DPD_MODE=3 -o mcml_3d_gpu mcml_gpu.cu mcmlio_gpu.c ./mcml_3d_gpu test_3d.mci

Once done, load any GPU output directly into look_mop_3d.m for interactive visualization:

1 2	mco_file = 'validate_RT/3d_gpu_RT.mco'; run('look_mop_3d.m')

8. Performance and Limitations

Metric	CPU (local, Apple M-series)	GPU (A100)
Photons	$10^6$	$10^6$
Grid size	$300\times300\times200$	$300\times300\times200$
Memory (OP_3D)	~144 MB (RAM)	~144 MB (VRAM)
Runtime	~minutes	< 1 s
Result accuracy	Yes	Yes (equivalent)

Key limitations:

3D grid memory scales cubically with resolution ($N_x \times N_y \times N_z$); high-resolution scenarios should use the GPU version to keep runtimes manageable.
The static buffer sOut[60000] caps the maximum number of steps per photon; photons with very long paths (e.g., in near-zero scattering media) may hit this boundary.
